Terafom – heat and sound insulation material based on chemically crosslinked foamed polyethylene
Terafom – heat and sound insulation material based on chemically crosslinked foamed polyethylene
Complex waterproof, heat and sound insulating material.

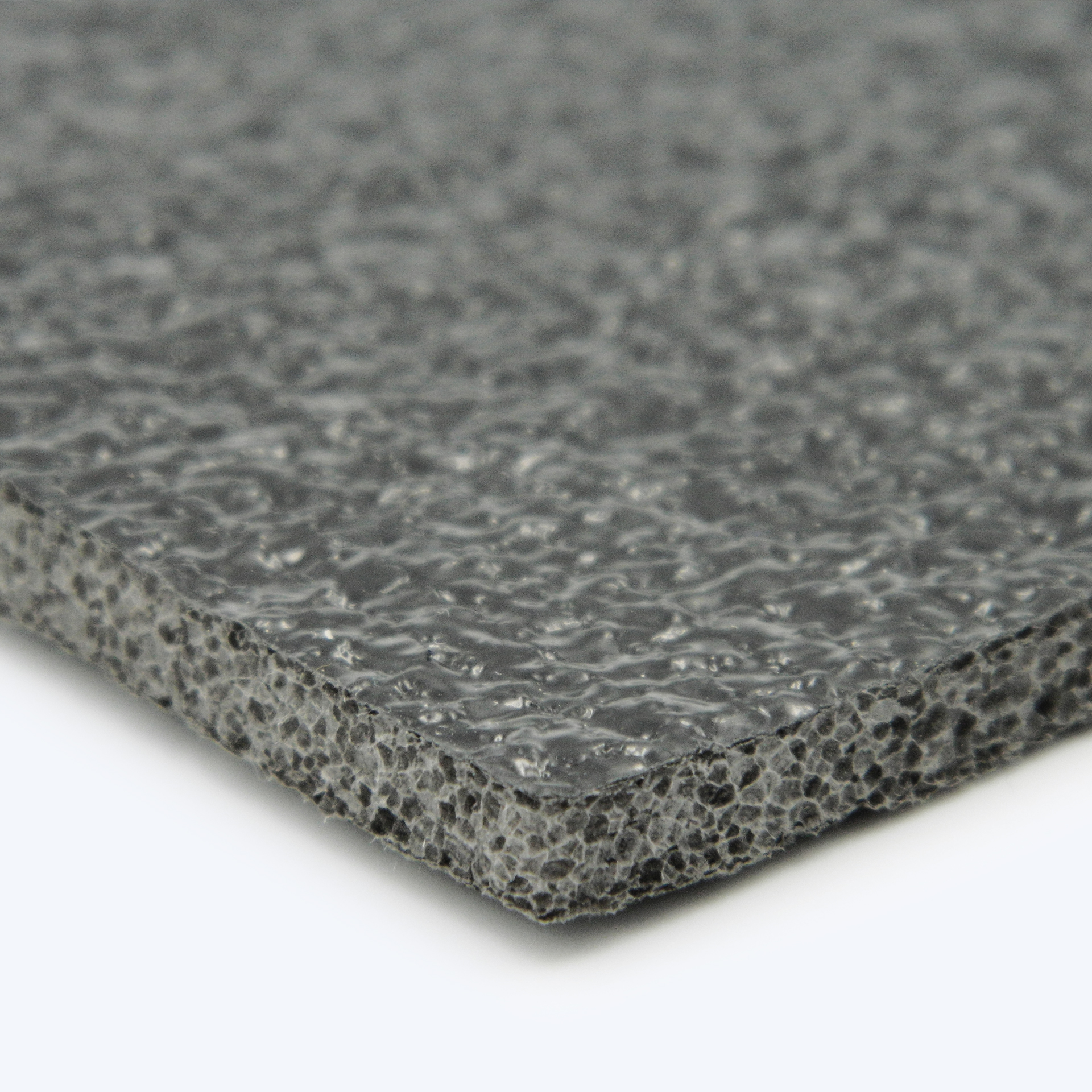

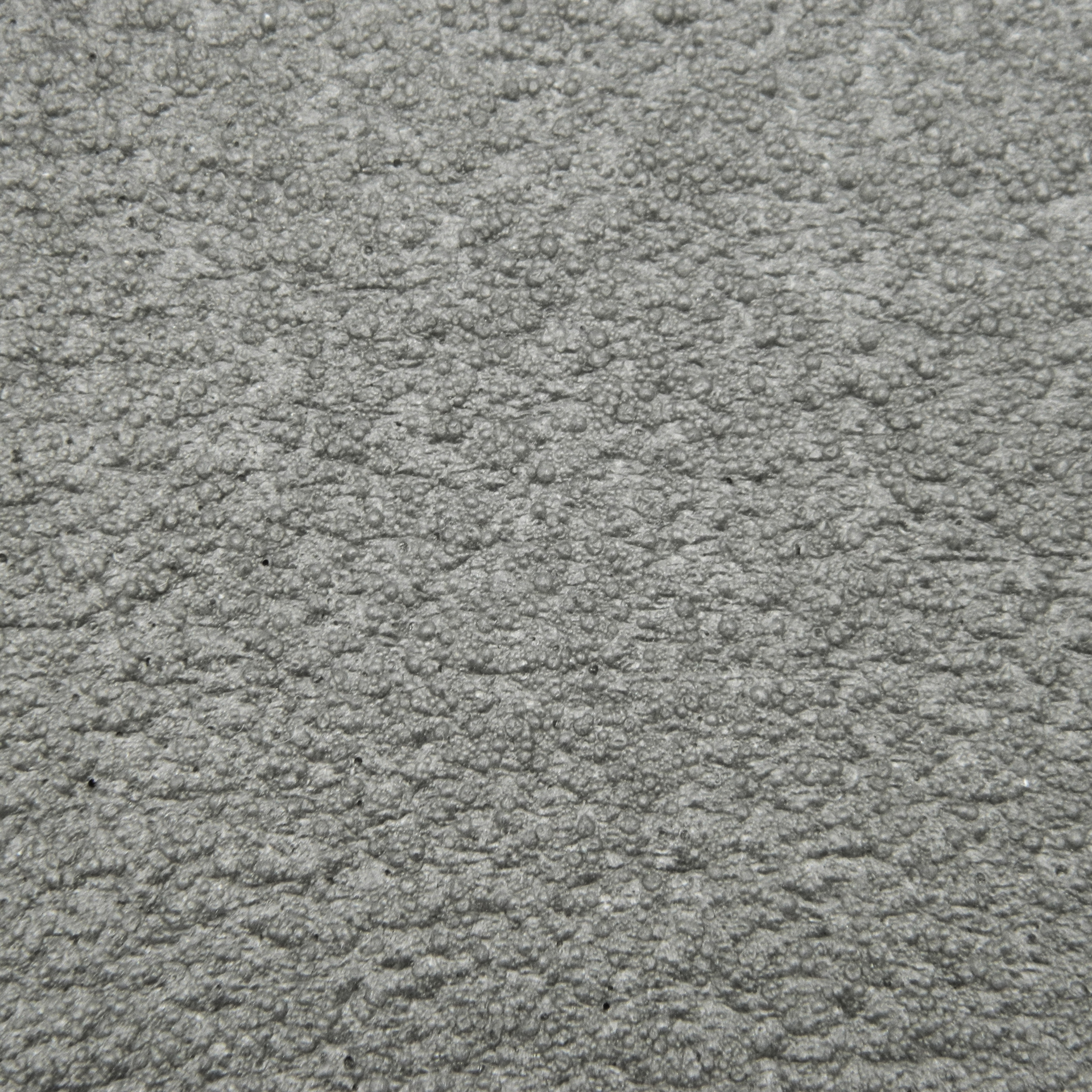

Product composition: chemically cross-linked polyethylene foam, waterproofing high-strength polyethylene film.
Scope of application

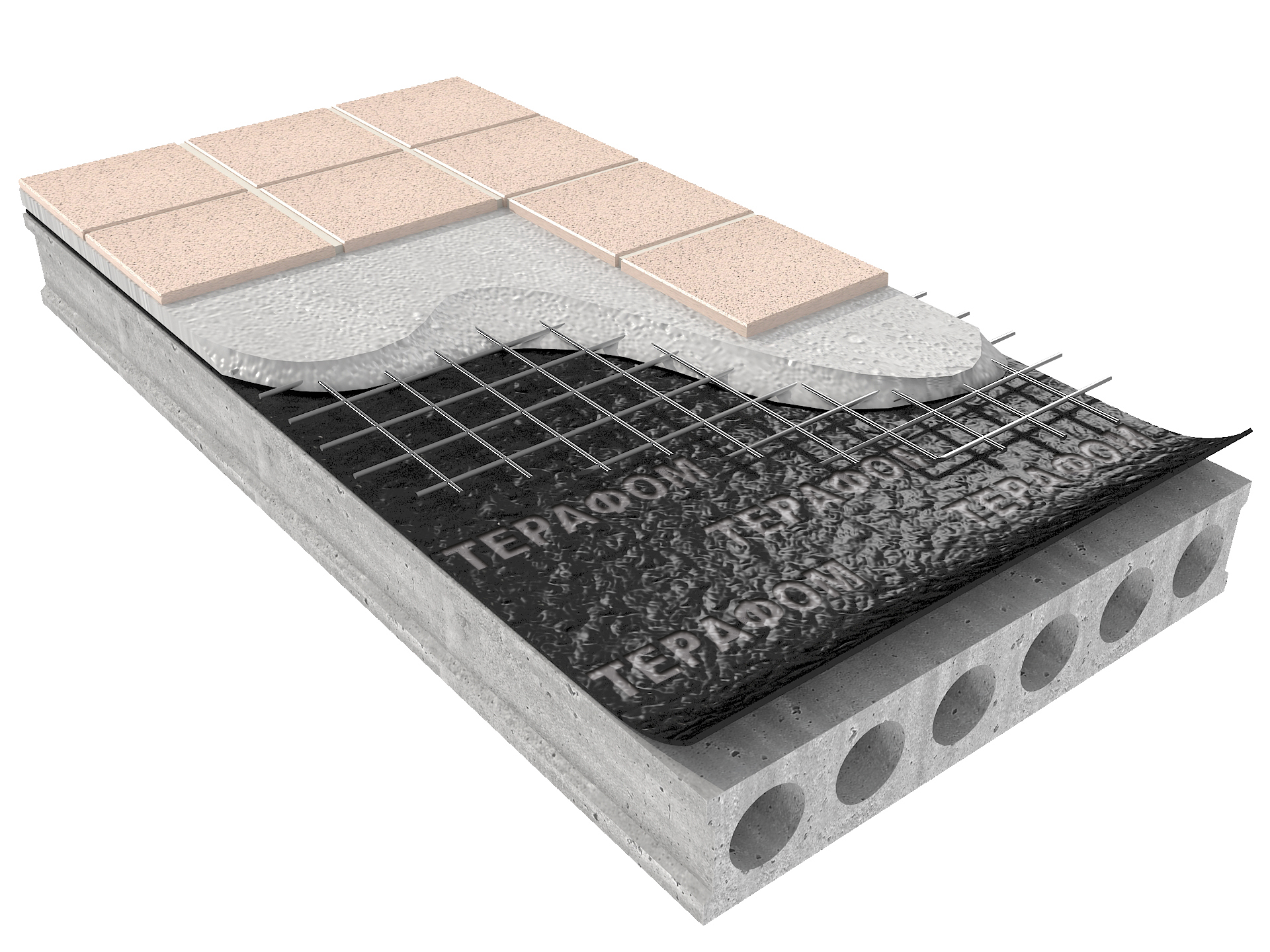

- The material is used in construction for protection from impact noise, thermal insulation and waterproofing of floors, installation of a "floating floor" (with a thickness of 4 mm or more), etc.
- Terafom of 3 mm thickness is used as a waterproofing material for floor coverings
Technical information
- excellent soundproofing (reduction of the impact noise index), hydro- and heat-insulating properties
- strong and elastic, withstands significant dynamic and static loads
- used when installing a "floating floor" for noise insulation in accordance with DSTU-N B V.1.1-34
- complies with fire safety standards
- suitable for residential buildings and industrial buildings, public facilities
- environmentally friendly, does not contain substances harmful to human and animal life

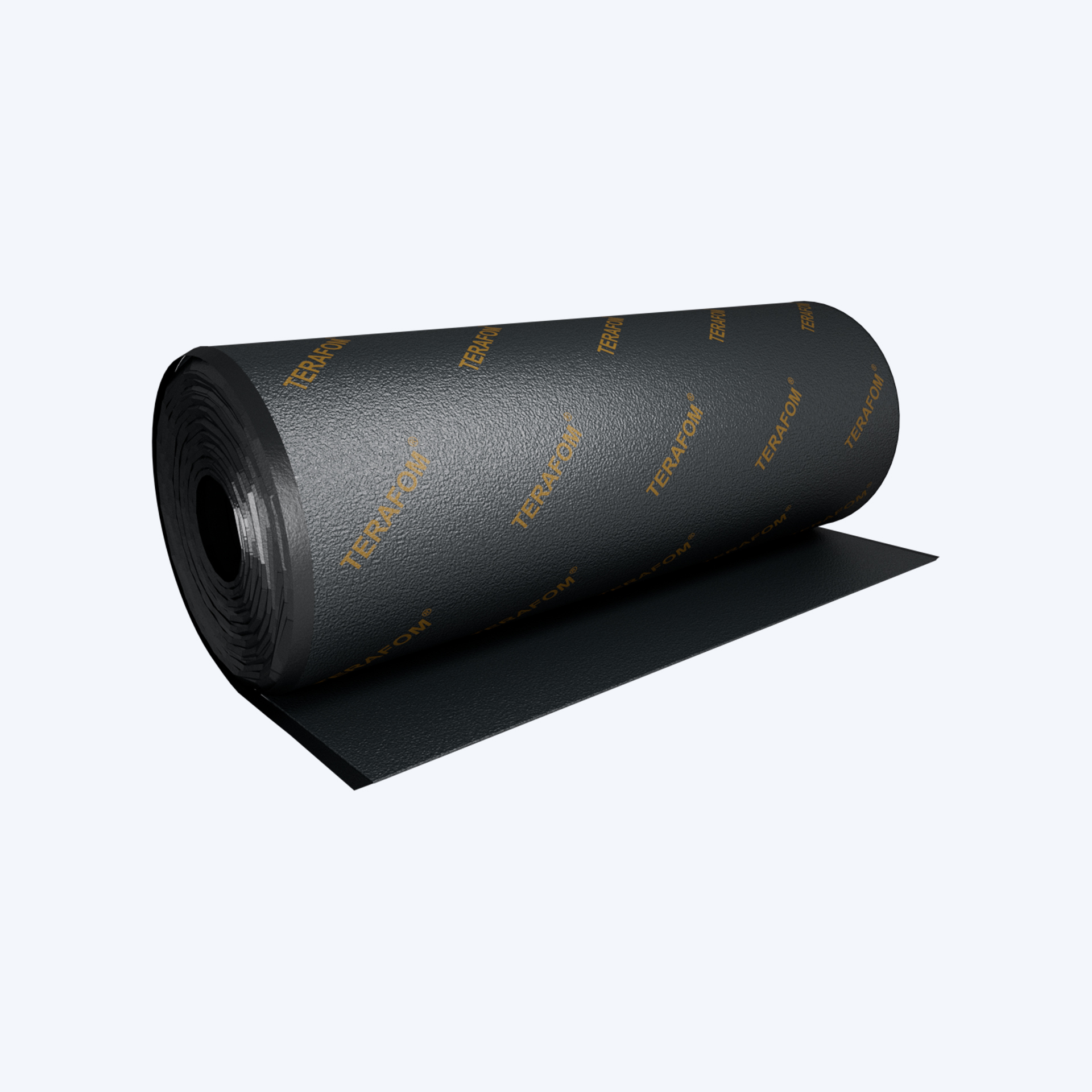

| Thickness, mm tolerance ± 0,5 mm | Width, mm tolerance ± 2% | Length, m tolerance ± 2% |
|---|---|---|
| 3; 4; 5 | 1200 | 40 |
| 8; 10 | 1200 | 30 |
| Name | Units | Value |
|---|---|---|
| Density | kg/m³ | 30±10% |
| Thermal conductivity | W/(m·K) | 0,037 |
| Tensile strength, not less than | kPа | 150 |
| Elongation at break in the transverse direction, not less than | % | 100 |
| Elongation at break in the longitudinal direction, not less than | % | 90 |
Index of reduction of the induced impact noise level at thickness: | dB | 21 |
| Compressive strength (25%) | kPа | > 30 |
| Operating temperature range | ˚С | from -40 to +80 |

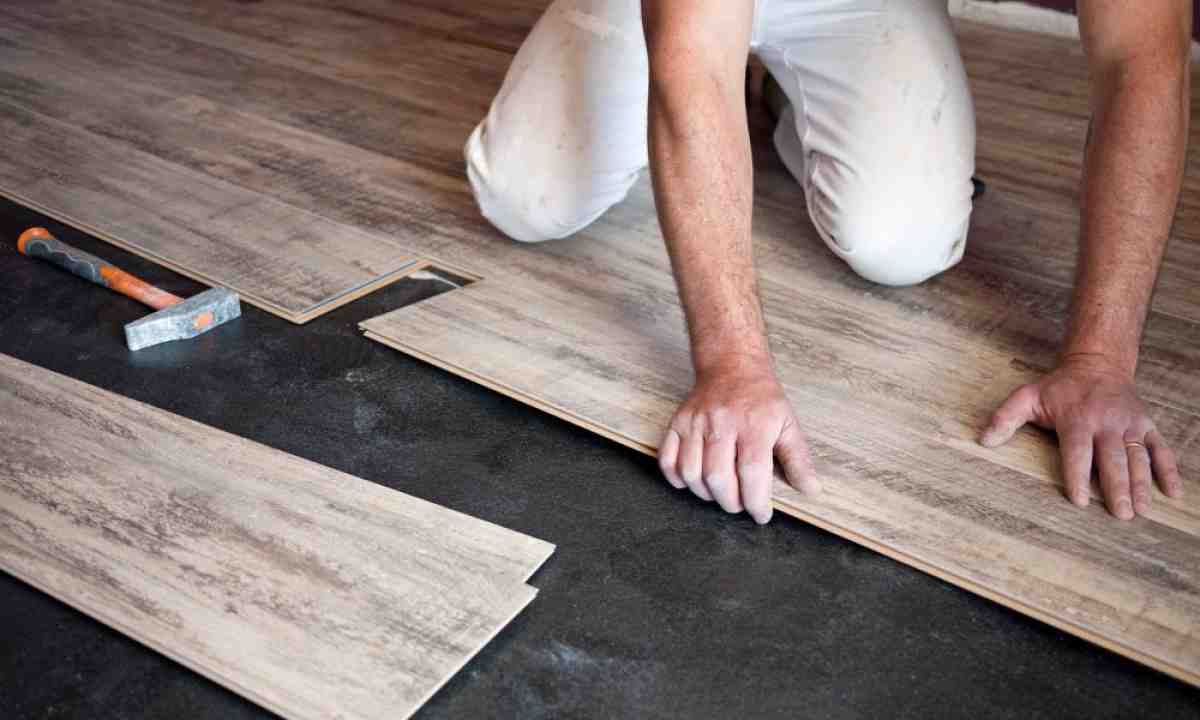

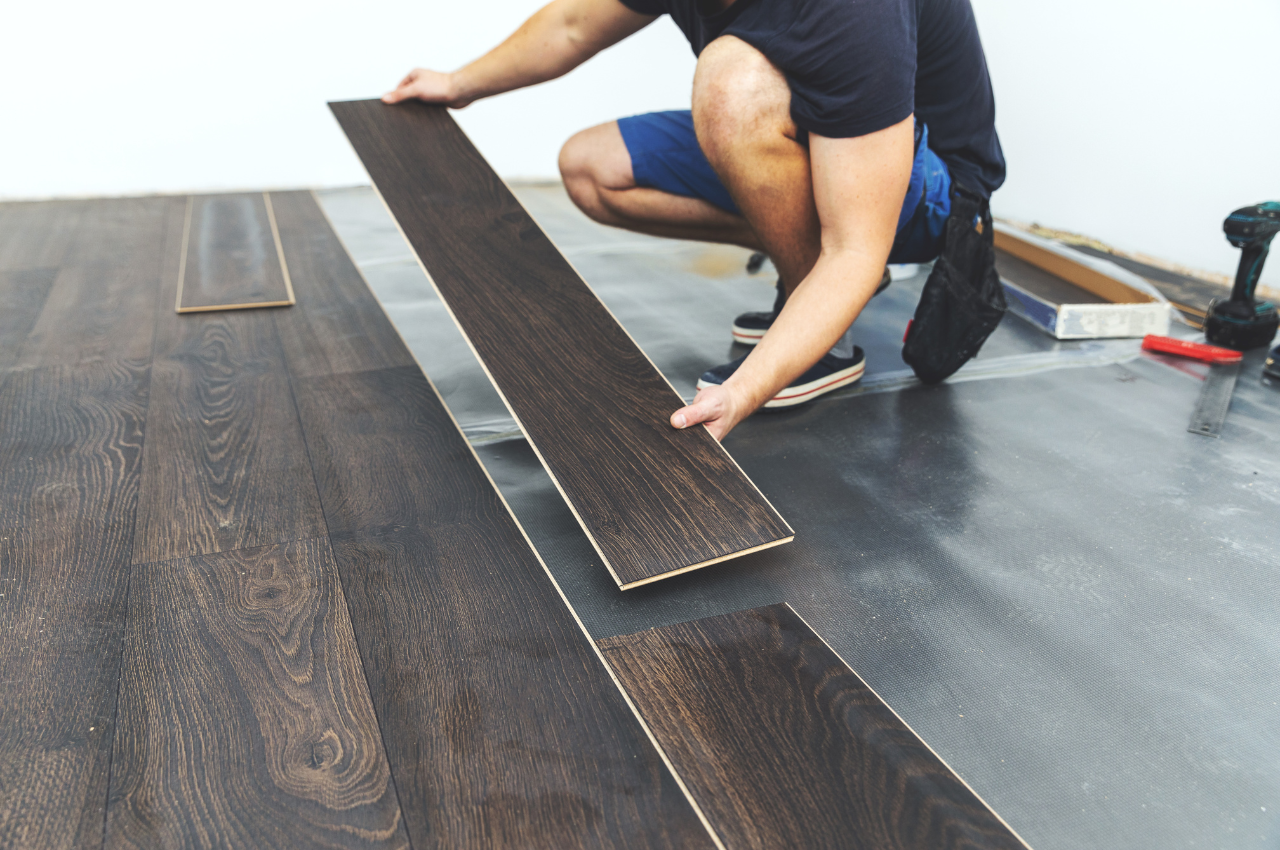

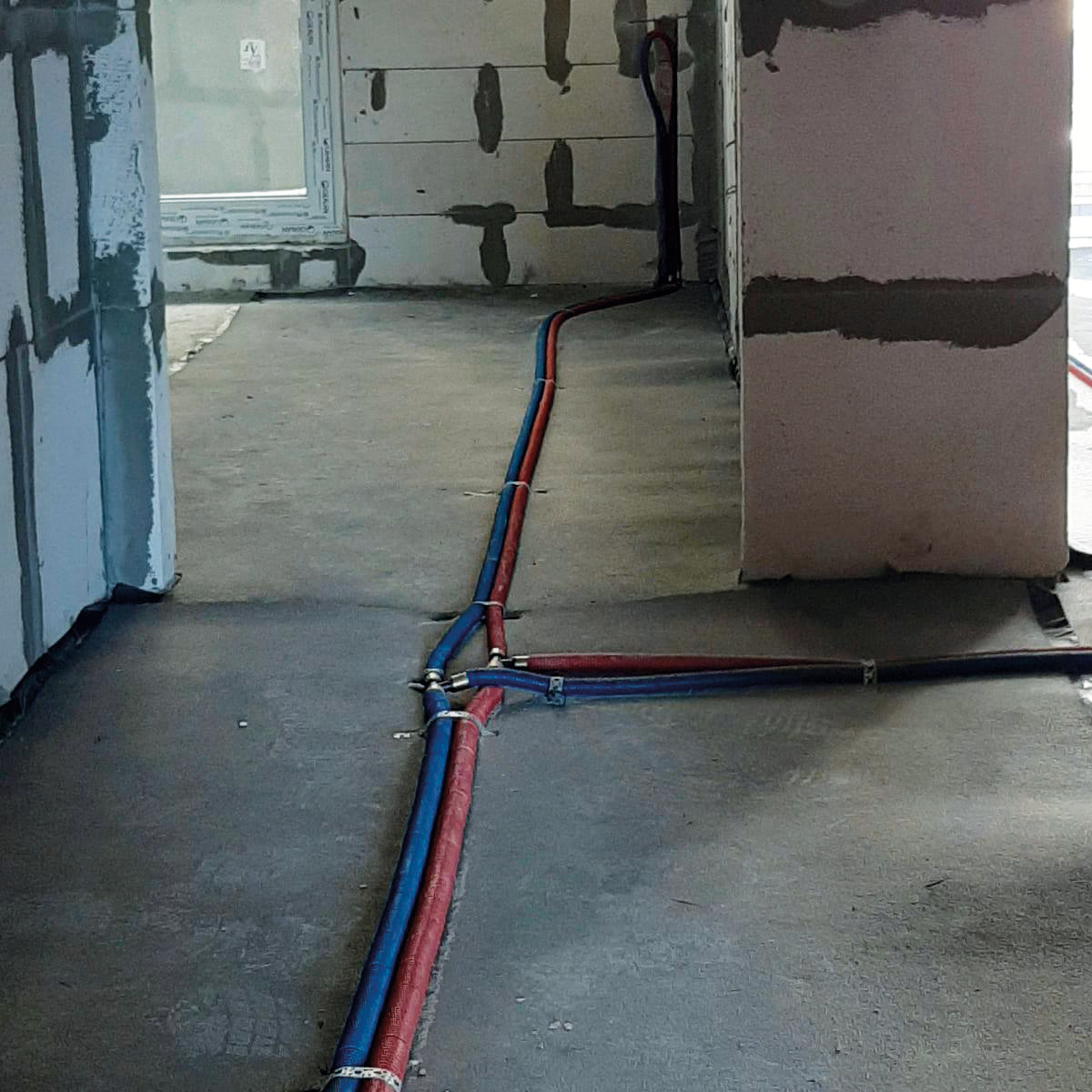

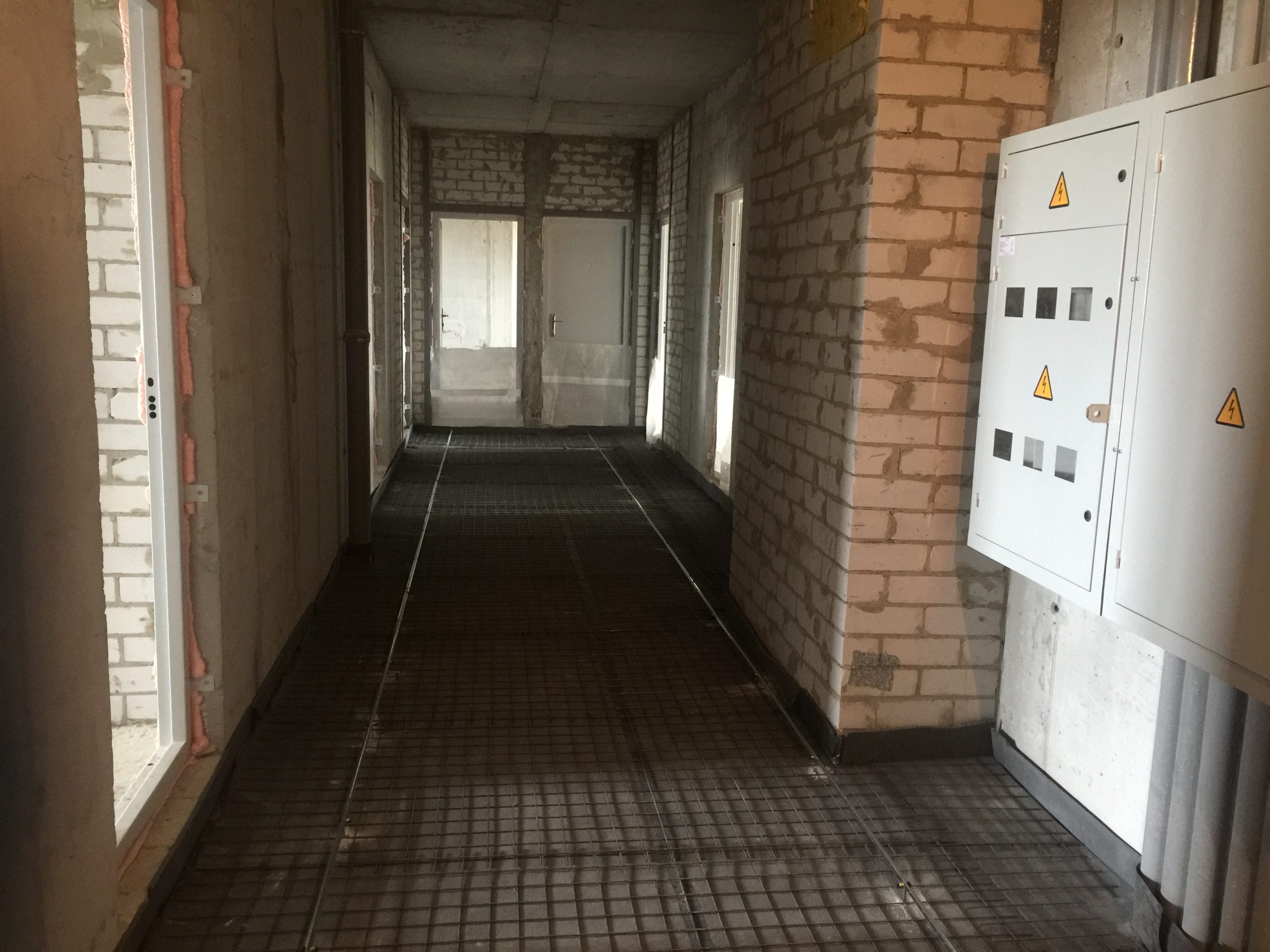

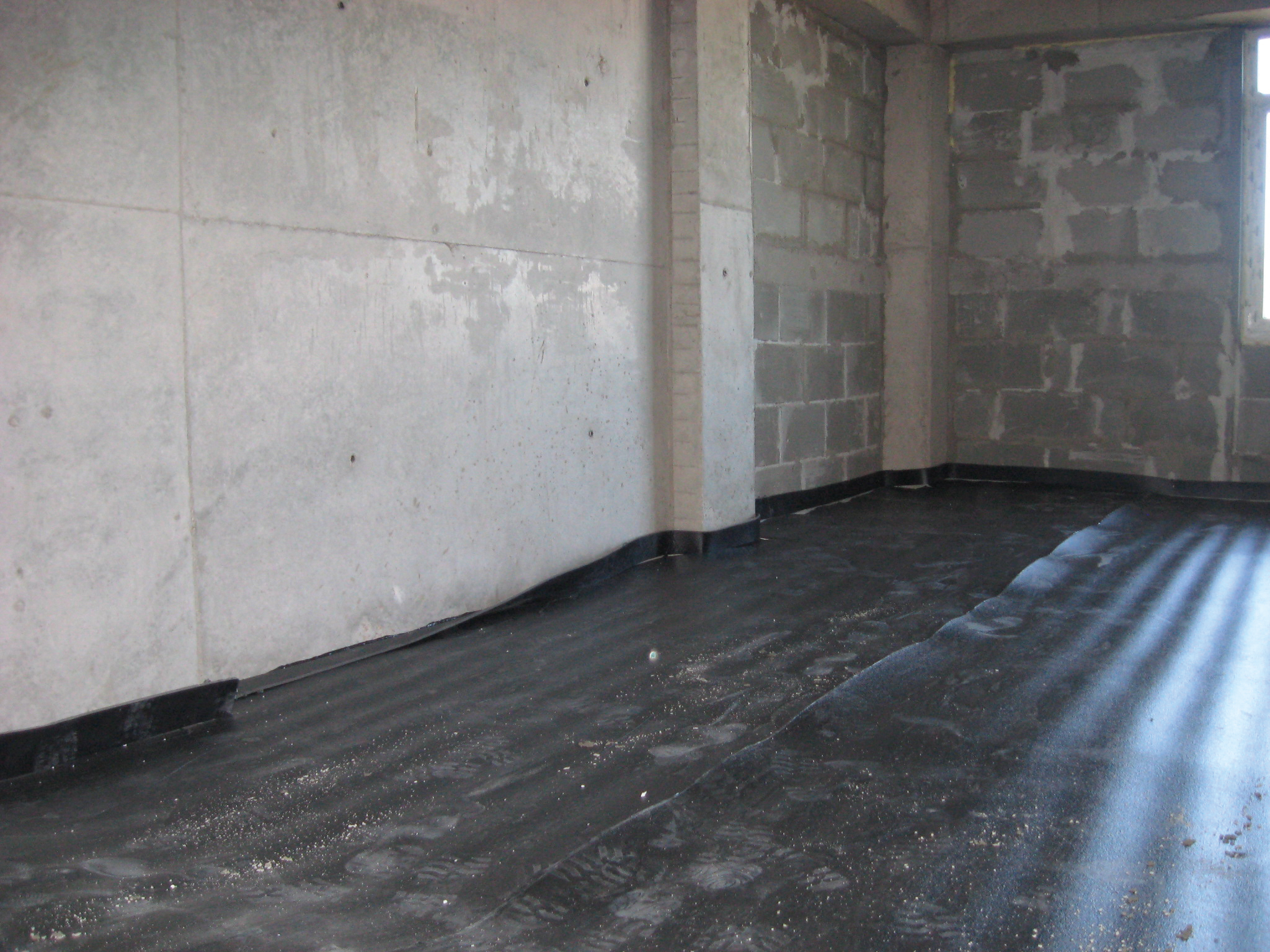

Examples of usage
