Highly effective tubular heat and noise insulating material based on foamed synthetic rubber with a protective coating of Aluholst. For ease of installation the tube has a longitudinal cut, the edges of which are covered with a permanent adhesive layer. Also along the edge of the cut there is a self-adhesive strip of protective coating for reliable bonding of the insulation to the overlaps.
The length of the NORMATUBE AL GF SK tube is 1 meter.
Product composition: Aluholst (aluminum foil laminated with polyethylene terephthalate film, heat-resistant polyurethane-based adhesive, fiberglass), foamed synthetic rubber. Adhesive strip based on permanent adhesive with reinforcing mesh and release film.
- insulation of ventilation and air conditioning systems

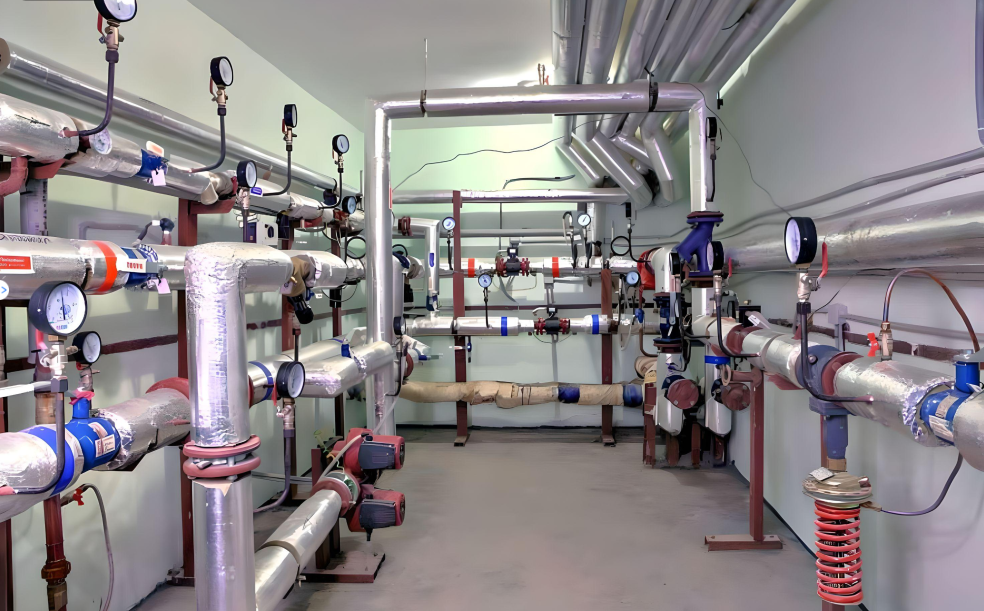

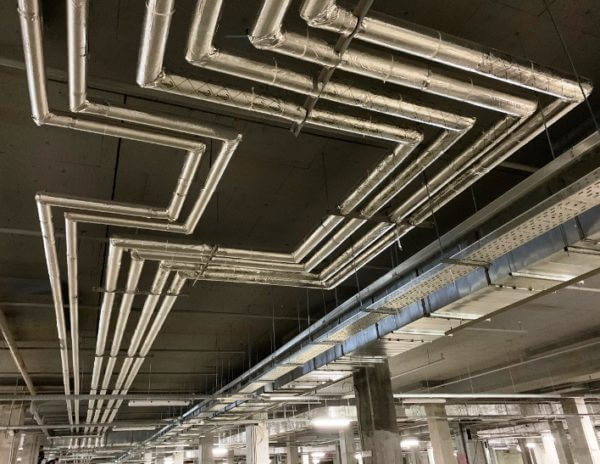

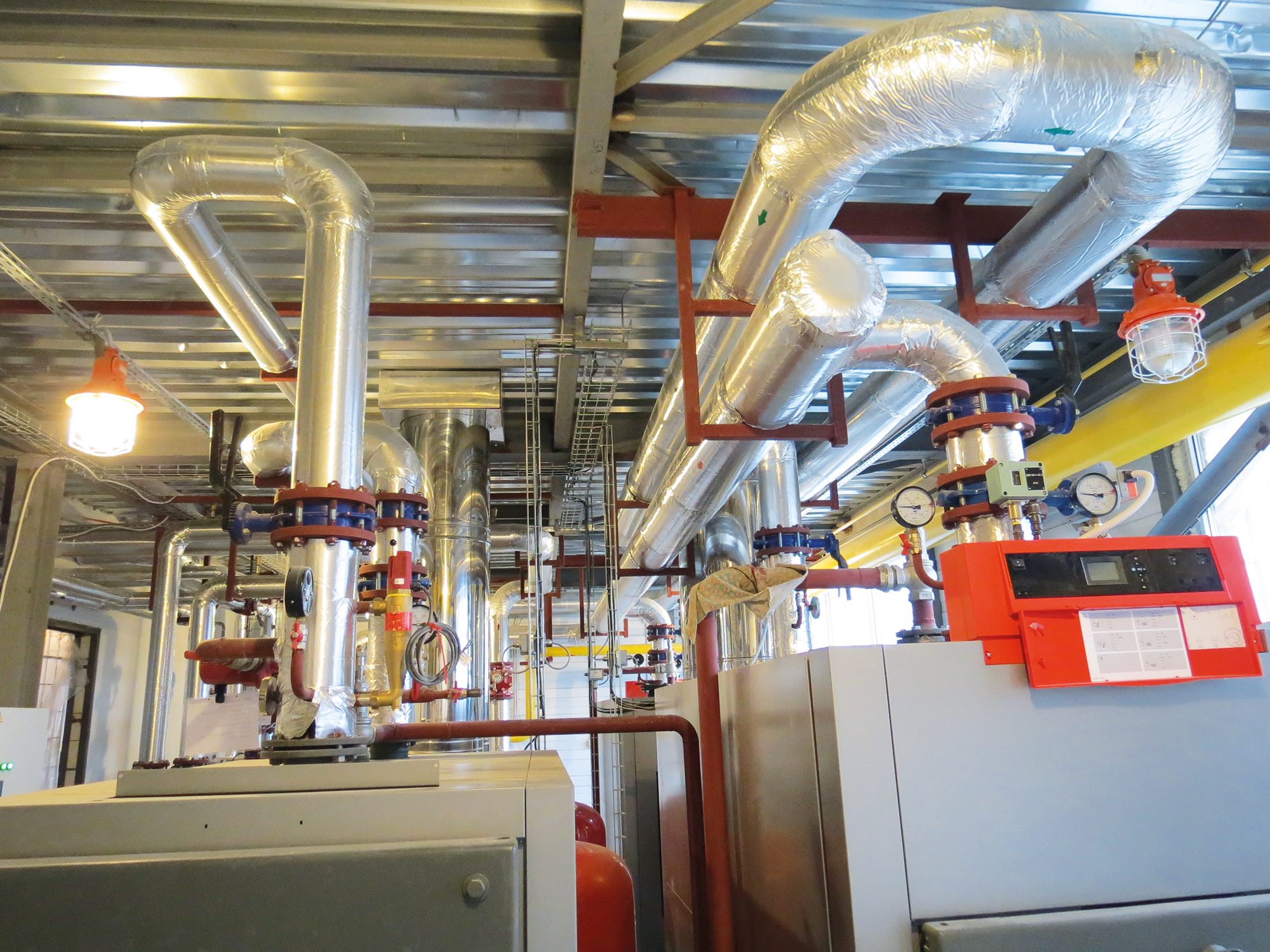

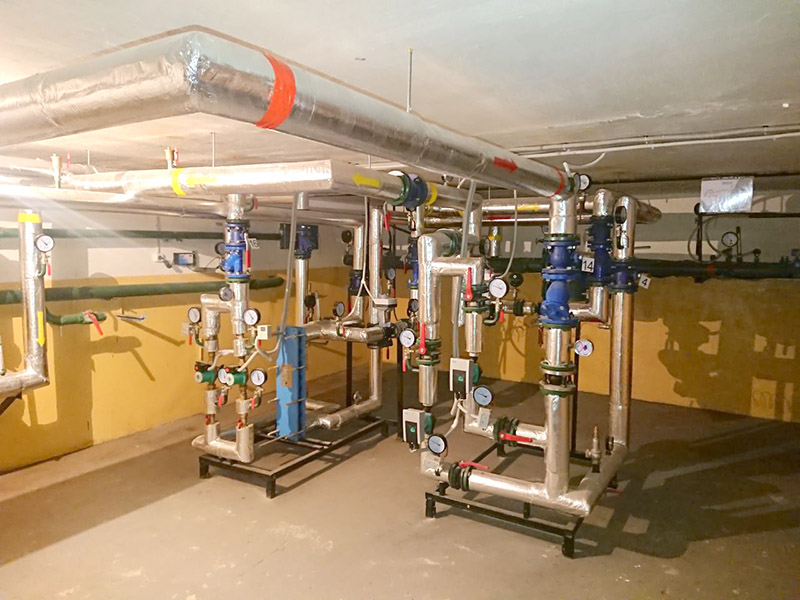

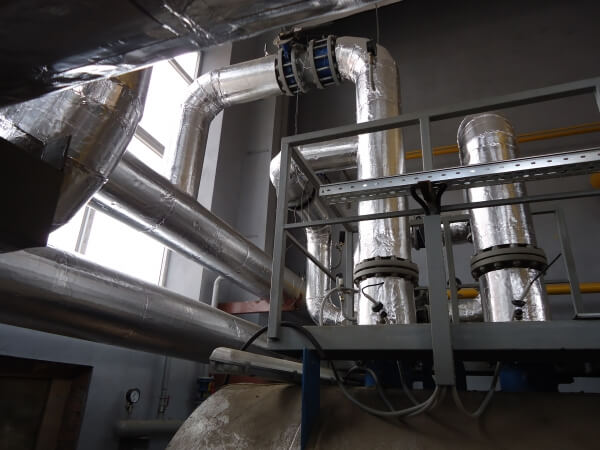

- insulation of pipes, pipelines of heating and water supply systems
- insulation of climate equipment
- insulation of petrochemical facilities
- quick and easy installation
- high-strength heat-resistant coating that protects the insulation surface from damage
- has excellent physical and mechanical characteristics along the elasticity and lightness
- perfect material for aesthetic application, due to its smooth surface
- high thermal insulating properties
- environmentally friendly, does not contain hazardous substances
- high resistance to aggressive environments, solvents, oils and gasoline
а Diameter, mm | b Thickness, mm |
|---|---|
| 15 ± 1,5 mm | 9; 13; 19 |
| 18 ± 2,5 mm | 9; 13; 19; 25; 32 |
| 22 ± 2,5 mm | 9; 13; 19; 25; 32 |
| 28 ± 2,5 mm | 9; 13; 19; 25; 32 |
| 35 ± 3 mm | 9; 13; 19; 25; 32 |
| 42 ± 3 mm | 9; 13; 19; 25; 32 |
| 48 ± 3 mm | 9; 13; 19; 25; 32 |
| 54 ± 3 mm | 9; 13; 19; 25; 32 |
| 60 ± 3 mm | 9; 13; 19; 25; 32 |
| 64 ± 3 mm | 9; 13; 19; 25; 32 |
| 70 ± 3 mm | 9; 13; 19; 25 |
| 76 ± 3 mm | 9; 13; 19; 25; 32 |
| 80 ± 3 mm | 9; 13; 19; 25 |
| 89 ± 3 mm | 9; 13; 19; 25; 32 |
| 102 ± 3 mm | 9; 13; 19; 32 |
| 108 ± 3 mm | 9; 13; 19; 25; 32 |
| 114 ± 3 mm | 9; 13; 19; 25; 32 |
| 133 ± 3 mm | 13; 19; 25; 32 |
| 140 ± 3 mm | 13; 19; 25; 32 |
| 160 ± 3 mm | 13; 19; 25; 32 |
| Name | Units | Value |
|---|---|---|
| Fire safety class | - | 1 |
| Combustibility | group | G1 |
| Density | kg/m³ | 40-60 |
| Thermal conductivity | W/(m·K) | -20°С = 0,031 0°С = 0,033 +20°С = 0,035 |
| Water vapor diffusion resistance coefficient, μ | - | ≥ 9 000 |
Operating temperature range | ˚С | from -40 to +100 |
